Industrial Power Quality Monitoring: Detect Harmonics, Sags, and Power Factor Issues
14 September 2026
Power quality monitoring industrial installations reveals the hidden electrical problems that cause unexplained equipment failures, nuisance protection trips, reduced motor life, and inflated electricity bills — issues that a standard energy meter cannot see because it only measures average consumption, not the waveform quality of the power being consumed. Every modern industrial facility has power quality problems: variable frequency drives (VFDs) on pumps, fans, and conveyors generate harmonic distortion that overheats motor windings and transformer cores; welding machines and large motor starts create voltage dips that trigger voltage sag detection IoT events correlated with unexplained CNC resets and robot faults; inductive motor loads reduce power factor, increasing apparent current and triggering utility reactive power penalty charges that add 5–15% to electricity bills. Power quality monitoring industrial meters connected via IIoT gateways to cloud platforms provide continuous measurement of voltage harmonics, current harmonic spectrum, power factor by phase, sag and swell events, and energy consumption — giving engineers and energy managers the data needed to diagnose power quality problems, specify corrective equipment (harmonic filters, capacitor banks, power conditioning), and demonstrate improvements after remediation. Industrial energy quality monitoring is the foundation for any meaningful industrial energy cost reduction programme — you cannot fix what you cannot measure.
Key Parameters in Industrial Power Quality Monitoring
- Harmonic Distortion Monitoring: Total Harmonic Distortion (THD) and individual harmonic order measurements (3rd, 5th, 7th, 11th, 13th harmonics) identify which frequency components distort the current or voltage waveform beyond IEEE 519 / IEC 61000 limits. Harmonic distortion monitoring localises the worst-offending loads — VFDs are typically the dominant 5th and 7th harmonic generators — enabling targeted harmonic filter installation rather than oversized power quality corrections.
- Voltage Sag Detection IoT: Voltage sags (brief drops to 10–90% of nominal voltage lasting 0.5 cycles to 1 minute) are the most common power quality event causing production equipment trips. Voltage sag detection IoT meters log every sag with timestamp, duration, magnitude, and affected phases — enabling correlation with production stoppage records to prove that utility grid disturbances (not equipment faults) are causing the trips, and quantifying the cost impact for grid improvement negotiations.
- Power Factor Monitoring: Real-time power factor monitoring by phase and for the whole facility identifies when reactive power draw increases — from new motor loads, degrading power factor correction capacitors, or load profile changes. Power quality monitoring industrial platforms with automatic capacitor bank control recommendations enable facilities to maintain power factor above penalty thresholds continuously rather than reacting to monthly utility bills.
- Industrial Energy Quality KPIs: Industrial energy quality dashboards combine all power quality metrics — voltage THD, current THD, displacement power factor, true power factor, peak demand, load factor — into structured KPI views that energy managers use for monthly reporting, compliance with IS/IEC standards, and energy audit submissions.
Power Quality Monitoring Industrial: Common Issues and Solutions
| Power Quality Problem | Industrial Power Quality Monitoring Detection | Remediation |
|---|---|---|
| Harmonic Distortion (VFDs) | Harmonic distortion monitoring — 5th/7th harmonic THD > IEEE 519 limits | Passive or active harmonic filter at VFD or MCC |
| Voltage Sags (Motor Starts) | Voltage sag detection IoT — duration, depth, phase-specific records | Soft starter, VFD, or UPS for sensitive loads |
| Low Power Factor | Power factor monitoring — real-time PF by phase; reactive power kVAr | Capacitor bank sizing; automatic power factor correction relay |
| Voltage Unbalance | Phase-by-phase voltage comparison in power quality monitoring industrial meter | Load redistribution across phases; utility transformer tap adjustment |
| Transient Overvoltages | Industrial energy quality transient capture — duration, peak voltage, source | Surge protection devices (SPDs); isolation transformers for sensitive equipment |
Deploy Power Quality Monitoring Industrial with Precisol Automation

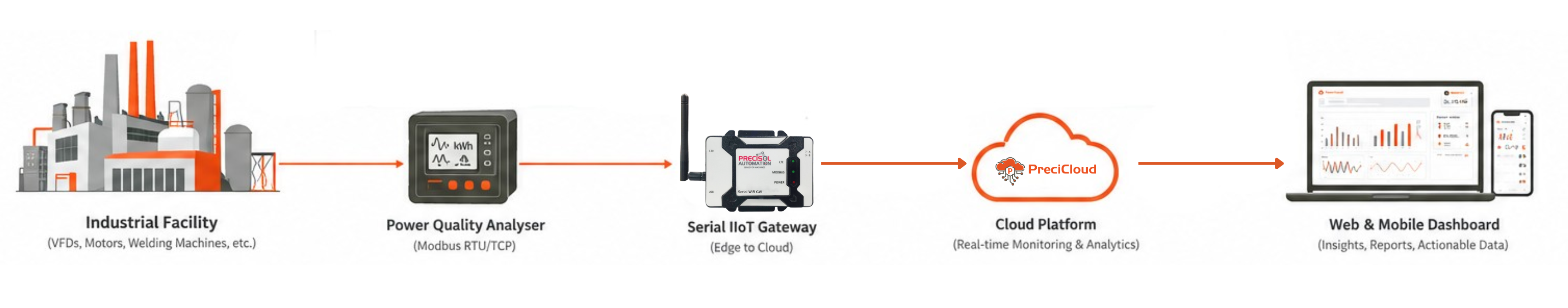

Precisol Automation's Serial IIoT Gateway connects to Modbus RTU/TCP power quality analysers at MCC panels and substations — transmitting harmonic distortion monitoring, voltage sag detection IoT, and power factor monitoring data to the cloud for real-time visibility. The PreciCloud IoT Cloud Dashboard provides power quality monitoring industrial views with harmonic spectrum displays, power factor trends, sag event logs, and industrial energy quality KPI reporting.
See IIoT energy monitoring delivering operational improvements in our IT-OT bridge for process automation case study, or explore how Precisol enables smart energy metering as the data foundation for comprehensive industrial energy quality management programmes.
Frequently Asked Questions
Why is power quality monitoring important for industrial facilities?
Power quality monitoring industrial is important because harmonics, voltage sags, and low power factor cause equipment failures, production stoppages, and increased energy bills. Harmonic distortion monitoring detects VFD-generated harmonics that overheat motors and transformers. Voltage sag detection IoT correlates grid disturbances with equipment trips. Power factor monitoring identifies reactive power penalty charges. Industrial energy quality improvement requires continuous IoT measurement — periodic spot measurements miss the events that cause the most damage.
What parameters does industrial power quality monitoring measure?
Industrial power quality monitoring measures voltage and current THD, individual harmonic orders (3rd through 50th), displacement and true power factor, active/reactive/apparent power, voltage sag and swell events (via voltage sag detection IoT), transients, frequency, and energy (kWh, kVArh). Harmonic distortion monitoring covers individual orders to identify dominant sources; power factor monitoring tracks phase-by-phase reactive power for targeted industrial energy quality correction.
How does power factor monitoring reduce industrial energy costs?
Power factor monitoring identifies when reactive power draw triggers utility penalty charges (typically when PF falls below 0.9–0.95). Power quality monitoring industrial meters show real-time PF by phase and identify the largest reactive consumers for targeted capacitor bank sizing. Industrial energy quality improvements from power factor correction typically deliver 5–15% reduction in peak demand charges and elimination of reactive power penalties, with 1–3 year payback on capacitor bank investments.
