IoT Communication Protocol Guide for Industrial Applications: Modbus, MQTT, OPC UA, LoRaWAN
09 October 2026
Understanding IoT communication protocol industrial options is fundamental for engineers designing IIoT systems — because the protocol choices made at the field device level, the gateway level, and the cloud transport level determine whether the system will scale reliably, integrate with existing plant equipment, and meet the latency and bandwidth requirements of the target application. Industrial IoT deployments involve multiple protocol layers that must be selected and matched correctly: field protocols (Modbus RTU, OPC UA, PROFIBUS, EtherNet/IP) connect sensors, PLCs, and field instruments to the IoT gateway; wireless transport protocols (LoRaWAN, NB-IoT, Wi-Fi, Zigbee) carry data over the air to gateways or cloud; and cloud messaging protocols (MQTT, HTTP/REST, AMQP) transmit processed data from gateways to cloud platforms and applications. The proliferation of industrial wireless protocol comparison options — with overlapping use cases, different trade-offs, and strong vendor and ecosystem biases — makes protocol selection one of the most practically challenging decisions in IIoT project planning. This guide structures the decision by protocol layer, clarifies the MQTT vs OPC UA IoT choice that confuses many engineers, explains the LoRaWAN industrial IoT versus cellular trade-off for wireless sensor deployments, and addresses the most common protocol interoperability question: Modbus vs MQTT industrial (the answer is that these are not competing alternatives — Modbus operates at the field device layer and MQTT at the cloud transport layer, and a well-designed IIoT system uses both).

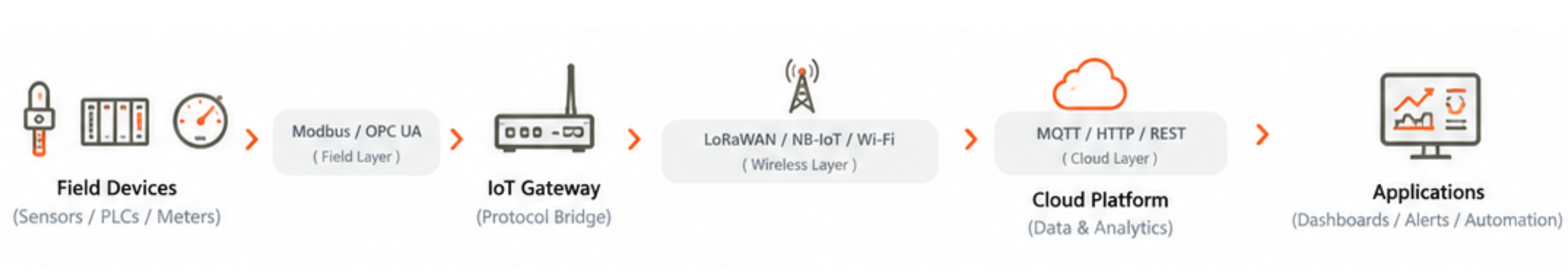

Industrial IoT Protocol Stack: Layers and Options
- Field Protocol Layer (Device to Gateway): The IoT communication protocol industrial at field level connects sensors and controllers to IIoT gateways. Modbus RTU (RS485) is the most widely deployed — connecting the vast installed base of PLCs, VFDs, energy meters, and smart sensors that every industrial facility uses. OPC UA is the modern alternative for controller-to-controller and controller-to-gateway communication where data modelling and security are required. PROFIBUS and EtherNet/IP are proprietary automation bus protocols found in specific PLC ecosystems (Siemens, Rockwell). Engineers must match the gateway's supported field protocols to the actual devices in the plant — a gateway with only Modbus TCP support cannot connect to PROFIBUS field devices without an additional bridge.
- Wireless Transport Layer (Field Device to Gateway): For wireless sensor deployments without cable infrastructure, industrial wireless protocol comparison covers: LoRaWAN industrial IoT (low power, long range, private network option — the preferred choice for battery-powered sensor networks across large industrial sites and remote locations); NB-IoT (cellular LPWAN via telecom operator — preferred for distributed assets in areas with cellular coverage where deploying own LoRa gateway is impractical); Wi-Fi (high bandwidth, short range — for high-data-rate applications or where existing Wi-Fi infrastructure exists); and Zigbee/Thread (mesh networking for dense sensor clusters in building automation).
- Cloud Transport Protocol Layer (Gateway to Cloud): MQTT is the dominant IoT communication protocol industrial for cloud transport — lightweight, reliable, and supported by all major cloud IoT platforms. The MQTT vs OPC UA IoT question arises here: use OPC UA for field-to-gateway (where data modelling and security matter) and MQTT for gateway-to-cloud (where lightweight efficiency and universal cloud platform support matter). HTTP/REST is simpler to implement and debug for low-frequency data; AMQP is used in enterprise message bus integrations. Modbus vs MQTT industrial is a false dichotomy — Modbus collects the field data; MQTT transmits it to the cloud.
Industrial IoT Communication Protocol Comparison
| Protocol | Layer | Best For | Limitations |
|---|---|---|---|
| Modbus RTU/TCP | Field | Legacy device integration; near-universal industrial support | No security; polling only; Modbus vs MQTT industrial — field only |
| OPC UA | Field / Gateway | MQTT vs OPC UA IoT — data modelling, security, controller-level | Complex; resource-intensive; less common in simple sensors |
| MQTT | Cloud Transport | IoT communication protocol industrial cloud messaging — lightweight, universal | No data model; security depends on implementation |
| LoRaWAN | Wireless | LoRaWAN industrial IoT — long-range, battery-powered sensor networks | Low data rate; limited to small messages per device |
| NB-IoT | Wireless | Wide-area industrial wireless protocol comparison — roaming assets | SIM cost; operator dependency; higher power than LoRa |
IoT Communication Protocol Industrial Selection with Precisol Automation
Precisol Automation's Serial IIoT Gateway supports the complete field protocol stack — Modbus RTU (RS485/RS232), Modbus TCP, and HART — providing the IoT communication protocol industrial field interface for the vast installed base of industrial devices. MQTT and HTTP/REST cloud transport protocols are built-in for cloud connectivity. Precisol's Wireless Sensors use LoRa wireless transport for battery-powered field deployments — completing the LoRaWAN industrial IoT and industrial wireless protocol comparison decision with proven hardware.
See multi-protocol IIoT integration in practice in our IT-OT bridge for process automation case study, or explore remote monitoring for Modbus PLCs as the Modbus vs MQTT industrial integration foundation — using Modbus to collect field data and MQTT to transmit it to the cloud platform.
Frequently Asked Questions
What are the main IoT communication protocols used in industrial applications?
IoT communication protocol industrial selection covers three layers: field protocols (Modbus RTU/TCP — the most widely deployed; OPC UA — modern, secure, data-modelling capable); cloud transport protocols (MQTT — dominant lightweight pub-sub IoT standard; HTTP/REST — simple web API); and wireless transport (LoRaWAN industrial IoT for long-range low-power sensor networks; NB-IoT for cellular-wide-area coverage; Wi-Fi for high-bandwidth short-range; Zigbee for dense mesh networks). Each layer is selected independently based on the device capabilities and application requirements.
What is the difference between MQTT vs OPC UA for industrial IoT?
MQTT vs OPC UA IoT addresses different protocol layers: MQTT is a lightweight cloud transport protocol — 2-byte header, broker-based pub-sub, universally supported by cloud IoT platforms, but with no data model (payload is just bytes). OPC UA is a comprehensive industrial standard with built-in data modelling, security (X.509 certificates), historical data access, and alarms. Best practice in IIoT uses OPC UA from controller to edge gateway (structured industrial data with type information) and MQTT from edge to cloud (efficient, universal cloud transport) — these complement rather than compete.
When should I choose LoRaWAN vs cellular (NB-IoT/4G) for industrial wireless IoT?
Choose LoRaWAN industrial IoT for private network deployments (no SIM cost), dense battery-powered sensor networks across large sites, and where sub-GHz building penetration is needed. Choose NB-IoT or 4G cellular for remote single-site assets where deploying own LoRa gateway is uneconomical, for roaming assets (vehicles, portable equipment), or for higher-data-rate applications. Modbus vs MQTT industrial is a separate, non-competing decision — Modbus collects field data; LoRaWAN or cellular transports it wirelessly; MQTT delivers it to the cloud — each protocol serves a different layer in the IoT communication protocol industrial stack.
