Marine Vessel Engine Monitoring: IoT and CAN Bus Telematics

Marine vessel engine monitoring with IoT and CAN bus telematics gives ship operators and fleet managers real-time visibility of engine health, fuel consumption, and performance data — eliminating the information gap between a vessel underway and shore-side operations. A marine engine telematics device connected to the vessel's NMEA 2000 or J1939 CAN bus continuously reads engine parameters, fault codes, and transmission data, transmitting this vessel performance data via cellular or satellite to a cloud maritime IoT monitoring platform. When a fault occurs — an engine DTC, rising coolant temperature trend, or oil pressure anomaly — the ship engine diagnostics system generates an immediate alert for shore-side engineers, enabling remote assessment of severity, parts ordering, and maintenance scheduling before the vessel arrives at port. Marine vessel engine monitoring transforms what was previously a black box of machine data into a continuous, actionable record that reduces unplanned downtime, optimises fuel consumption, and improves voyage planning.

Marine Engine Protocols: NMEA 2000 and J1939

Effective marine vessel engine monitoring requires understanding the two primary CAN bus protocols used on commercial vessels. NMEA 2000 (N2K) is the marine-specific CAN-based networking standard that modern vessels use for communication between the engine, instruments, chart plotters, GPS, and autopilot systems. N2K broadcasts standardised PGNs (Parameter Group Numbers) for engine RPM, fuel flow rate, coolant temperature, oil pressure, gear state, and battery voltage — providing a standardised interface for maritime IoT monitoring across multi-brand engine installations. SAE J1939 — the same protocol used in commercial trucks and off-highway equipment — is also prevalent on commercial marine engines, particularly those based on Volvo Penta, MAN, Cummins, or Caterpillar truck engine platforms. A marine engine telematics logger that supports both NMEA 2000 and J1939 provides the broadest compatibility for ship engine diagnostics across mixed or multi-engine vessel configurations.

Key Vessel Performance Data from Marine IoT Monitoring

• Engine Health Parameters: Engine RPM, coolant temperature, oil temperature and pressure, intercooler temperature, and exhaust gas temperature — the core marine vessel engine monitoring parameters that indicate engine condition and operating stress. Ship engine diagnostics alerts trigger when any parameter exceeds configured thresholds.
• Fuel Consumption Data: Instantaneous fuel flow rate, daily and voyage fuel totals, and SFOC (Specific Fuel Oil Consumption) calculated from fuel flow and shaft power data — critical vessel performance data for fuel cost management and route optimisation in commercial shipping.
• Transmission and Drive: Gear state (forward/neutral/reverse), transmission oil temperature, shaft RPM, and propeller slip — marine engine telematics data that provides a complete driveline picture for performance analysis and ship engine diagnostics.
• Fault Codes: Active J1939 DTCs and NMEA 2000 N2K alerts from engine, transmission, and auxiliary system controllers — broadcast to the maritime IoT monitoring platform with severity classification and recommended actions.

Connectivity for Marine Vessel Engine Monitoring

Deploy Marine Vessel Engine Monitoring with Precisol Automation

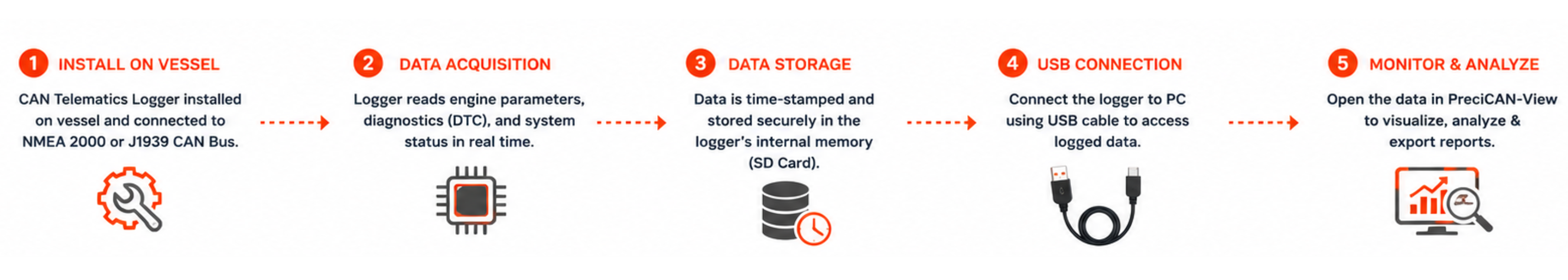

Precisol Automation's CAN Telematics Logger interfaces with both NMEA 2000 and J1939 CAN bus networks for comprehensive marine vessel engine monitoring — storing vessel performance data locally and transmitting via 4G LTE for coastal maritime IoT monitoring applications. The CAN Bus Gateway provides additional protocol conversion capability for complex marine engine telematics installations with multiple engine ECUs or mixed protocol environments.

See marine vessel engine monitoring in practice in our marine vessel engine monitoring case study, or explore how Precisol supports fleet management applications with proven CAN bus ship engine diagnostics capabilities.
