Modbus RTU vs Modbus TCP: Key Differences and When to Use Each

Understanding Modbus RTU vs Modbus TCP is fundamental for any industrial automation engineer connecting PLCs, sensors, drives, and SCADA systems. The Modbus protocol is the most widely deployed industrial communication standard in the world — and it comes in two dominant variants. Modbus RTU runs over legacy serial wiring (RS485 or RS232), while Modbus TCP runs over modern Ethernet infrastructure. Choosing between Modbus RTU vs Modbus TCP — or bridging them via serial to Ethernet conversion — determines your plant's wiring cost, communication speed, scalability, and PLC connectivity architecture for years to come.

What Is the Modbus Protocol?

Developed by Modicon in 1979, the Modbus protocol is a master-slave industrial communication protocol where a single master initiates all transactions and one or more slave devices respond. The Modbus protocol defines a set of function codes for reading and writing registers and coils in slave devices — Function Code 03 reads holding registers, FC 01 reads coils, FC 06 writes a single register. These function codes are identical in both Modbus RTU vs Modbus TCP implementations; the difference lies entirely in the transport layer. The Modbus protocol's simplicity, openness, and broad device support make it the default industrial communication protocol choice for connecting PLCs, HMIs, energy meters, drives, and sensors worldwide.

Modbus RTU: Serial Industrial Communication

Modbus RTU (Remote Terminal Unit) is the original serial implementation of the Modbus protocol. It runs over RS485 or RS232 physical links, encodes data in compact binary format, and uses a 16-bit CRC for error checking. In Modbus RTU vs Modbus TCP comparisons, RTU is the clear winner for low-cost, short-distance plant floor deployments. An RS485 Modbus RTU network can connect up to 32 devices (or 256 with repeaters) on a single two-wire bus run, at speeds from 1,200 baud to 115,200 baud over distances up to 1,200 metres. The Modbus protocol over RS485 requires no Ethernet infrastructure, no IP address management, and no network switches — just twisted-pair cable and correct termination.

The limitation of Modbus RTU in the Modbus RTU vs Modbus TCP comparison is its single-master constraint and serial speed ceiling. Only one master can exist on a Modbus RTU segment, and higher baud rates require shorter cable runs. For legacy PLC connectivity on existing RS485 wiring, Modbus RTU remains the industrial communication protocol of choice.

Modbus TCP: Ethernet-Based Industrial Communication

Modbus TCP encapsulates the Modbus protocol inside standard TCP/IP packets transmitted over Ethernet. In Modbus RTU vs Modbus TCP, the TCP variant eliminates the serial distance limitation, supports multiple simultaneous masters, and integrates naturally with existing IT network infrastructure. Modbus TCP uses port 502 and replaces the CRC of Modbus RTU with TCP's own error management — the Modbus Application Protocol (MBAP) header carries a transaction identifier and protocol identifier instead. Modbus TCP enables PLC connectivity from a SCADA workstation anywhere on the network, remote monitoring over the internet via VPN, and direct integration with cloud IoT platforms without serial to Ethernet conversion hardware at every device.

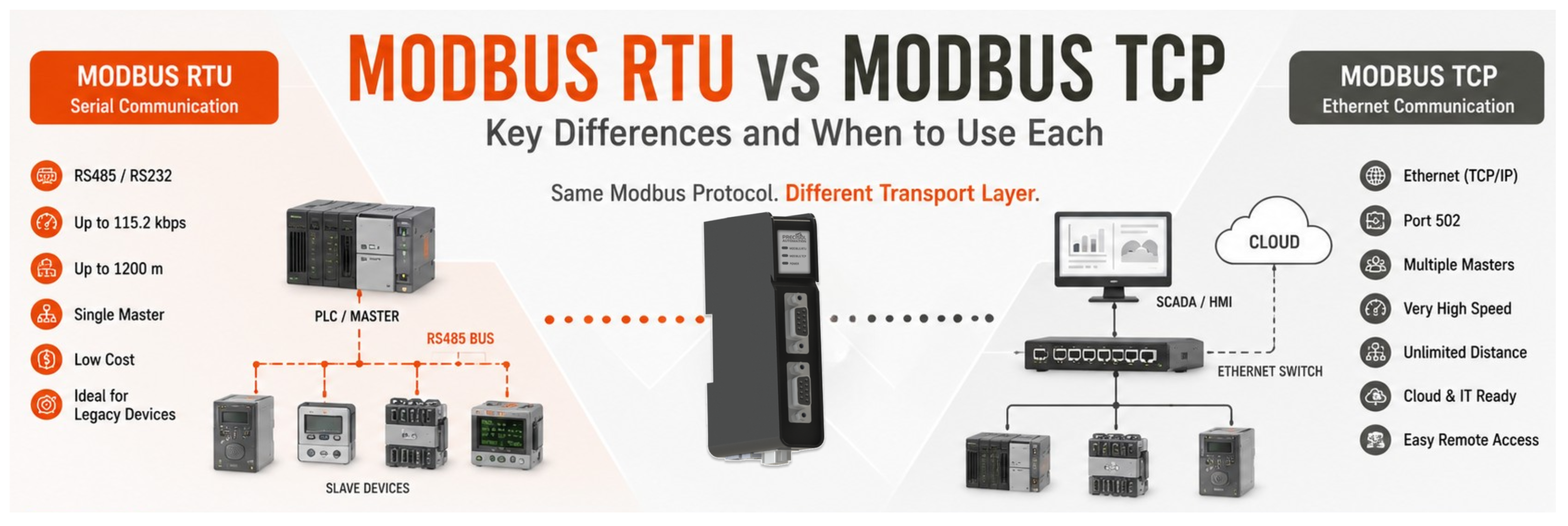

Modbus RTU vs Modbus TCP: Direct Comparison

Serial to Ethernet Conversion: Bridging Both Worlds

In most real industrial facilities, Modbus RTU vs Modbus TCP is not an either/or choice — both coexist. Legacy sensors, energy meters, and drives that communicate via Modbus RTU must be accessible to modern SCADA and cloud platforms that speak Modbus TCP or MQTT. Serial to Ethernet conversion hardware — specifically Modbus RTU to TCP converters and IIoT gateways — bridges this gap. A serial to Ethernet conversion device connects to the RS485 bus on one side and to the Ethernet network on the other, transparently translating Modbus RTU frames into Modbus TCP packets. This serial to Ethernet conversion approach preserves the existing field device investment while enabling modern PLC connectivity from anywhere on the network.

Industrial communication protocol migration projects that combine serial to Ethernet conversion with a cloud-ready IIoT gateway can also translate Modbus data directly to MQTT or OPC UA, enabling Industry 4.0 analytics without replacing a single field device.

Connect Modbus RTU and TCP Networks with Precisol Automation

Precisol Automation's Modbus RTU to TCP Converter provides robust, industrial-grade serial to Ethernet conversion that bridges Modbus RTU field devices to Ethernet SCADA and cloud platforms — with zero configuration of the connected devices. For more complex IIoT gateway applications that combine Modbus protocol aggregation with MQTT publishing and edge analytics, the RS485 Serial IIoT Edge Gateway handles complete protocol translation and PLC connectivity in a single DIN-rail device.

See Modbus protocol serial to Ethernet conversion in action in our industrial machine health monitoring case study, or explore how Precisol enables seamless remote monitoring and control of Modbus PLCs across industrial plants.
