Remote Water Level Monitoring: IoT Solutions for Tanks and Reservoirs
06 August 2026
Remote water level monitoring with IoT sensors provides continuous, automated tracking of liquid levels in water storage tanks, sumps, reservoirs, wells, and process vessels — eliminating the need for manual inspection rounds and enabling instant alerts when levels reach critical high or low set-points. A water tank level sensor — ultrasonic, submersible pressure, or radar — measures the liquid level continuously, and an IoT level monitoring system transmits that data wirelessly to a cloud platform accessible from any device. Remote water level monitoring is particularly valuable for water utilities managing distributed storage infrastructure, industrial facilities with multiple process and fire-water tanks, and agricultural operations managing irrigation reservoirs. Water management IoT converts these manually inspected assets into continuously monitored, automatically managed systems — preventing the costly consequences of overflow and pump dry-run while freeing inspection staff for higher-value tasks.
Water Tank Level Sensor Technologies for IoT Level Monitoring
Choosing the right water tank level sensor is the first decision in any remote water level monitoring deployment. The sensor technology determines measurement range, accuracy, and suitability for the liquid and tank geometry:
- Ultrasonic Level Sensor: Mounts at the top of the tank and measures level by timing an ultrasonic pulse reflected from the liquid surface. Non-contact, so no fouling or corrosion concerns — ideal for remote water level monitoring of raw water, effluent, and chemical tanks. Ultrasonic level sensor range is typically 0.25–8 m, with accuracy of ±1–5 mm. Foam or turbulent surfaces reduce accuracy.
- Submersible Pressure Sensor: Installed at the tank bottom, measures hydrostatic pressure and calculates level from liquid density. Accurate and reliable for closed tanks, sumps, and wells — widely used in water management IoT for underground sump remote water level monitoring. Suitable for 0–100 m depth range.
- Float Switch: Provides simple high/low-level contact output for IoT level monitoring alarm functions. The simplest form of remote water level monitoring for overflow and dry-run protection — does not provide continuous level data, only set-point detection.
- Radar Level Sensor: The highest-accuracy water tank level sensor technology — guided or free-space radar measures level to ±1 mm accuracy over ranges up to 30 m. Used in water management IoT for large reservoirs and critical process vessels where precision remote water level monitoring is essential.
Remote Water Level Monitoring Applications
| Application | Water Tank Level Sensor Type | Remote Water Level Monitoring Benefit |
|---|---|---|
| Drinking Water Overhead Tank | Ultrasonic level sensor or submersible pressure | Automated pump control; prevent overflow and under-supply |
| Fire Water Storage Tank | Submersible pressure sensor | Compliance monitoring; IoT level monitoring alert on low level |
| Industrial Process Tank | Radar or ultrasonic level sensor | Water management IoT integration with production scheduling |
| Sump and Effluent Pit | Submersible pressure sensor | Remote water level monitoring high-level alert before overflow |
| Irrigation Reservoir | Ultrasonic level sensor (surface mounted) | Water management IoT for irrigation scheduling and rainfall tracking |
| Borewell and Groundwater | Submersible pressure sensor (long-range) | IoT level monitoring of aquifer depletion and recovery rates |
Deploy Remote Water Level Monitoring with Precisol Automation

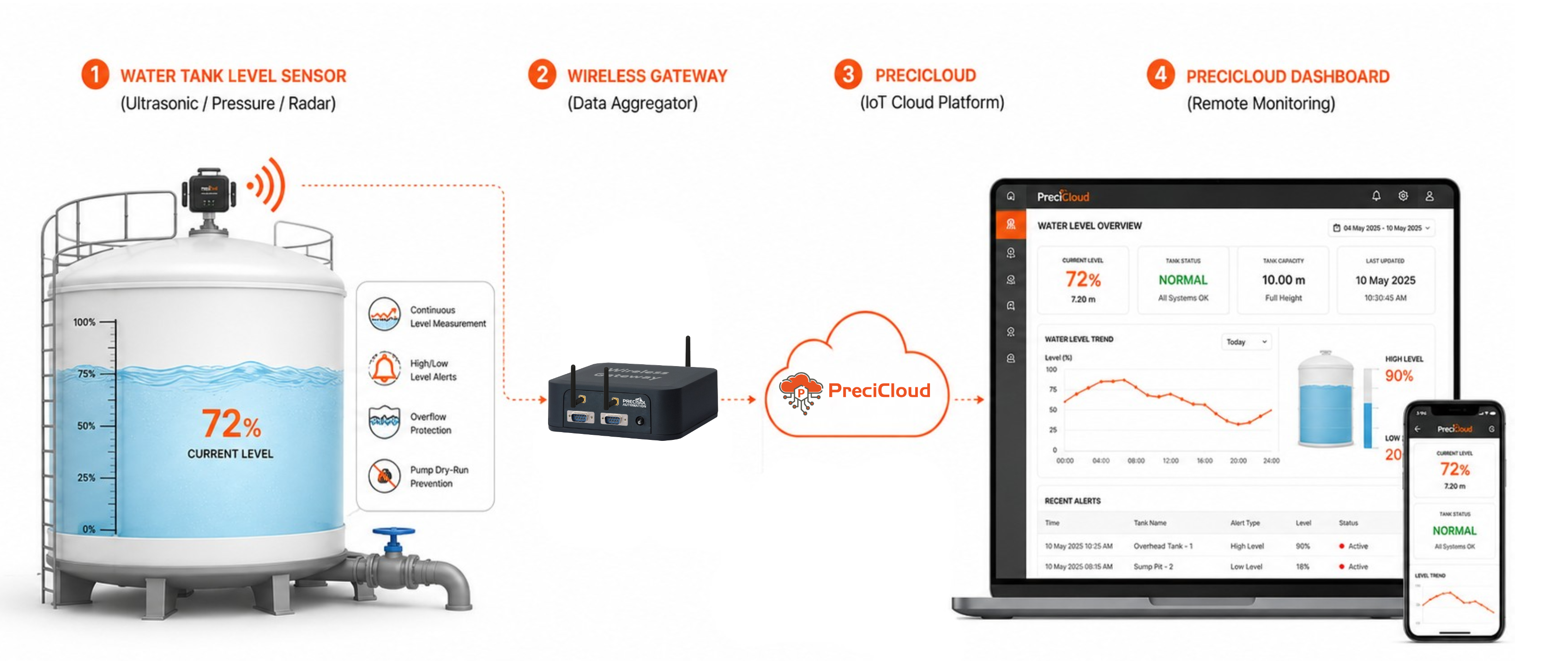

Precisol Automation's Wireless IoT Sensors include ultrasonic and pressure-based water tank level sensors that transmit IoT level monitoring data wirelessly to the cloud — enabling remote water level monitoring without wired infrastructure at tank locations. The Wireless Gateway collects data from multiple water tank level sensor nodes across the facility and delivers real-time water management IoT visibility with configurable high/low alerts and historical trending.
See remote water level monitoring in a water utility application in our remote water level monitoring case study, or explore how Precisol enables smart flow meter monitoring alongside IoT level monitoring for complete water management IoT solutions.
Frequently Asked Questions
What is remote water level monitoring?
Remote water level monitoring is automated, continuous liquid level measurement via a water tank level sensor — transmitting data wirelessly to a cloud IoT level monitoring platform. It eliminates manual inspection rounds and sends immediate alerts for high/low level conditions, preventing overflow and pump dry-run events in water management IoT applications.
What types of sensors are used for remote water level monitoring?
Remote water level monitoring uses ultrasonic level sensors (non-contact, top-mounted), submersible pressure sensors (bottom-mounted, hydrostatic), float switches (simple high/low IoT level monitoring), and radar sensors (highest accuracy). Choose the water tank level sensor technology based on tank geometry, liquid type, accuracy requirement, and range needed for your water management IoT application.
How does remote water level monitoring prevent pump dry-run?
Remote water level monitoring tracks suction tank level continuously via a water tank level sensor. When level falls to the minimum threshold, the IoT level monitoring platform alerts and can de-energise the pump relay — stopping the pump before dry-run causes bearing, seal, or impeller damage. Water management IoT systems with relay outputs provide fully automated dry-run protection.
