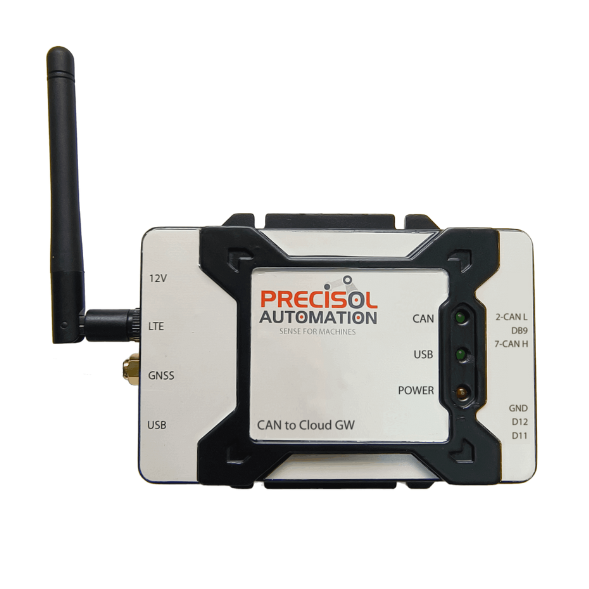

General
Power Supply: 12V DC
Power consumption: 1.5A
Max @12V
PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool
Indication: Status LEDs for Power, Serial communication, cloud network communication
CAN Interface
Single-channel CAN 2.0 interface supporting CAN protocol version 2.0-part A, B and ISO 11898-1/2 (High Speed CAN connection)
rogrammable baud rate from 5kbps up to 1Mbps
CAN bus connection via a 9-pin D-Sub connector
ESD Surge protection on CAN bus terminal
CAN channel has built-in 120Ω terminal resistor
Environmental
Dimension: 105mm X 68mm X 31.5mm (W/O flanges)
Weight: 138 gm
Mechanicals: ABS plastic (IP40)
Operating Temperature: -40 to +85 Degree Celsius
Data Storage
Storage Type: Non-Removable microSD card
Capacity: 8 to 32GByte
Digital Inputs
Number of channels: 2
Input Switching Threshold: High – 12V, Low – 0V
Cellular Connectivity
LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)
Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8
Antenna: SMA connector for external finger type or expandable antenna
SIM interface: Nano SIM card
Cloud Data Transfer
Log data in industry standard format
Cyclic Logging support – Oldest file will be deleted when storage is full
100% power safe data logging – no file corruption when disconnected
Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data
RTC can be configured to match local time zone
RTC can be auto-synced via LTE network
Each device has a globally unique ID ensuring unique log file naming
Configuration or firmware Over-The-Air support with digital signature
Periodic heartbeat to cloud for connection supervision
Option for enabling or disabling upload of logged files to cloud
