Our Industrially verified automotive dataloggers can connect to your LIN/CAN bus enabled systems for logging real-time parameters. With one time configuration, the device can log almost all the standard automotive protocol data with time stamp.
These devices can also be configured to log and download raw data or decoded data using the custom configurator tool PreciCON.

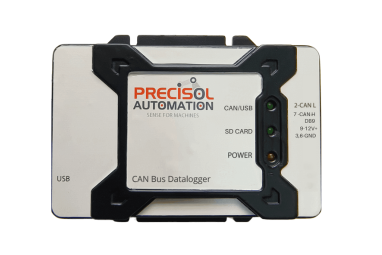

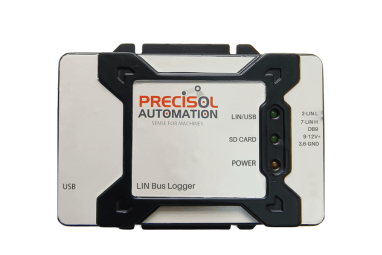

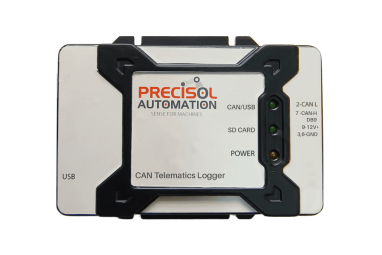

Precisol’s LIN/CAN bus loggers are carefully designed to operate in an automotive environment with support for single LIN and single/dual classical CAN or CAN-FD interface. All the LIN/CAN Datalogger variants have inbuilt micro-SD card with size ranging between 8GB to 32GB making it an offline LIN/CAN bus analyzer device for automotive field-testing applications. Users can configure and plug-in this CAN bus analyzer to the vehicle and data logging will be initiated once the ignition is ON. Once completed, the device can be directly connected to the PC via USB interface and data can be downloaded in industry standard formats like csv, MF4, etc
Options are available to add GPS for location traction and digital inputs for events acquisition from external devices.
