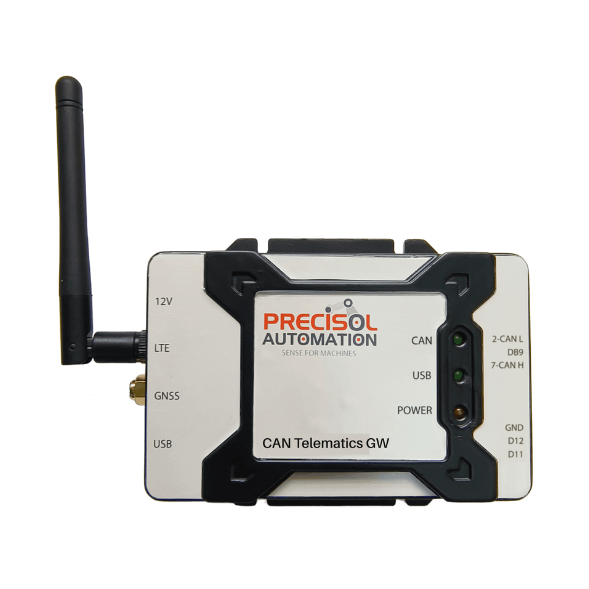

CAN Telematics Gateway


Our CAN Telematics Gateway is advanced version of CAN bus gateway device that bridges the gap between vehicle systems and advanced telematics platforms. The gateway connects to the vehicle's CAN bus, accessing real-time data for onboard diagnostics and predictive maintenance applications.

CAN telematics gateway can be configured with the suitable DBC file which defines the structure of CAN messages and information for decoding the physical values. Telematics gateway captures raw CAN data (IDs and payloads) transmitted on the CAN bus by various vehicle tracking system. The gateway identifies messages by matching their CAN IDs with the IDs defined in the DBC file. Using the DBC file, the gateway decodes the raw data into meaningful signals (e.g., speed, engine RPM, temperature). The decoded and transmitted data are show in a PreciCloud cloud dashboard.

Get a Quote

Highlights

PreciCloud - Cloud Dashboard

A customized cloud dashboard for viewing the acquired data from anywhere at any time. Support for remote device configuration, OTA firmware upgrade and email/SMS notification. Secure login with option for setting customized dashboard view for different users.

PreciCon - Configuration Tool

Configure the CAN bus, cloud and data acquisition/upload interval settings using our customized configurator tool "PreciCon" has context menu. Support for both Windows and Linux. Option to upload the DBC file for decoded physical value.

Quality & Efficiency

Durable, robust IP40 rated ABS plastic enclosure can withstand the toughest automotive and industrial conditions. Simply connect the device to CAN bus via 4-wire connections and rigidly screw your adapter with available flange arrangement.

Typical Application


With its compact design and cellular connectivity, the gateway is ideally suitable for telematics and predictive maintenance of a vehicle!

Key Features

  • 1x CAN 2.0
  • MicroSD card Storage (8GB to 32GB)
  • DBC file upload
  • IP40 rated enclosure
  • USB 2.0 Interface
First Image
  • Real Time Clock
  • Free Configuration software PreciCon
  • Live CAN bus monitoring
  • Encryption Support
  • CAN Error Logging
Last Image

General

Power Supply: 12V DC

Power consumption: 1.5A

Max @12V

PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool

Indication: Status LEDs for Power, Serial communication, cloud network communication

CAN Interface

Single-channel CAN 2.0 interface supporting CAN protocol version 2.0-part A, B and ISO 11898-1/2 (High Speed CAN connection)

Programmable baud rate from 5kbps up to 1Mbps

CAN bus connection via a 9-pin D-Sub connector

ESD Surge protection on CAN bus terminal

CAN channel has built-in 120Ω terminal resistor

Environmental

Dimension: 105mm X 68mm X 31.5mm (W/O flanges)

Weight: 138 gm

Mechanicals: ABS plastic (IP40)

Operating Temperature: -40 to +85 Degree Celsius

Data Storage

Storage Type: Non-Removable microSD card

Capacity: 8 to 32GByte

Analog Inputs

Number of channels: 2

Range: 4mA to 20mA current input

Resolution: 16-bit

Digital Inputs

Number of channels: 2

Input Switching Threshold: High – Greater than 3V or 1.5V (optional, to be mentioned during ordering), Low – Less than 3V or 1.5V (optional, to be mentioned during ordering)

Voltage input limit: 30V Max

Cellular Connectivity

LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)

Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8

Antenna: SMA connector for external finger type or expandable antenna

SIM interface: Nano SIM card

Cloud Data Transfer

Log data in industry standard format.

Cyclic Logging support – Oldest file will be deleted when storage is full

100% power safe data logging – no file corruption when disconnected.

Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data

RTC can be configured to match local time zone.

RTC can be auto-synced via LTE network.

Each device has a globally unique ID ensuring unique log file naming.

Configuration or firmware Over-The-Air support with digital signature

Periodic heartbeat to cloud for connection supervision

Option for enabling or disabling upload of logged files to cloud

Applications

Remote Vehicle on board diagnostics

CAN telematics gateway connects to a vehicle's onboard diagnostics (OBD-II) port or CAN bus system to acquire vehicle vital data. The gateway captures raw diagnostic data and uses DBC file to convert raw data into actionable information. It differs from CAN bus gateway in a way that it can decode the raw frames and provide the human readable physical values.
Using public cellular network (4G/2G), the telematics gateway transmits diagnostic and operational data to the fleet management system. These protocols ensure reliable and secure data flow. The transmitted data can be analyzed in PreciCloud dashboard. This enables: Real-time vehicle health monitoring, and immediate alerts for critical faults.

vehicle on board diagnostics

FAQs

A CAN Telematics Gateway is a device that connects a vehicle’s CAN bus (Controller Area Network) with external telematics systems (e.g., cloud platforms, or mobile apps). It collects, filters, translates, and transmits vehicle data (such as speed, fuel level, battery status, fault codes, GPS location) over cellular communication.
