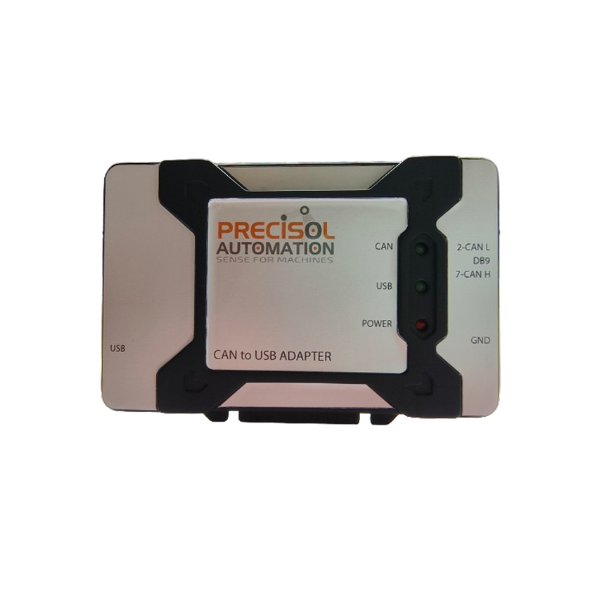

PreciCAN-CAN to USB Adapter


Our USB to CAN converter is an ideal solution for connecting any CAN bus to your PC via the USB port! This is a low-cost plug-and-play device that enables effortless integration, allowing you to interface your CAN bus with a PC for real-time monitoring and analysis. It's the perfect tool for automotive diagnostics and industrial automation.

Compatible with the open-source software tool Bus Master, our adapter provides robust capabilities for generating, simulating, analyzing, and testing CAN bus data.

Additionally, the USB to CAN converter features galvanic isolation up to 500 volts, ensuring safe and reliable operation. Whether you need a CAN analyzer or a CAN bus monitor, this adapter delivers precise and effective performance for all your diagnostic needs.

Get a Quote

Highlights

Protocol Supported

Supports J1939, ISO14229 (UDS), and J2534 (pass-through) protocols with the timestamp accuracy of 1 msec and speed up to 1 Mbps. It allows the use of CAN analyzer to monitor and analyze CAN bus communications.

Works with Bus Master

USB to CAN converter works extensively with BUS MASTER, an open-source software tool to simulate, analyze, and test CAN bus. It is used to send or receive data from the server. An ideal tool for CAN-based development and testing.

PreciCAN-Pro

PreciCAN-Pro version supports CAN-FD interface with up to 5Mbps baud-rate. A custom window-based application, "PreciCAN-View” is available with UDS stack enabling diagnostic services and flash programming.

Typical Application


With its compact design and cellular connectivity, the gateway is ideally suitable for telematics and predictive maintenance of a vehicle!

Key Features

  • 1x CAN 2.0
  • USB 2.0 Interface
  • Compact & Portable
  • Supports J1939 and J2534
  • ISO14229 (UDS) support
  • Free Configuration software PreciCon
First Image
  • IP40 rated enclosure
  • Real Time Clock
  • Galvanic Isolation​
  • Live CAN bus monitoring
  • Encryption Support
  • CAN Error Logging
Last Image

General

Power Supply: 5V via USB device connector

Power consumption: <500mA

PC interface:Standard USB Type B connector.

Indication: Status LEDs for Power, Serial communication, cloud network communication

CAN Features

Single channel CAN 2.0 interface

Supports CAN protocol version 2.0-part A, B and ISO 11898-1/2 (High Speed CAN connection)

Programmable baud rate from 5kbps up to 5Mbps

Timestamp resolution 1mS

CAN bus connection via a 9-pin D-Sub connector

Galvanic isolation up to 500 V

ESD Surge protection on CAN bus terminal

CAN channel has built-in 120Ω terminal resistor

Environmental

Dimension: 105mm X 68mm X 31.5mm (W/O flanges)

Weight: 138 gm

Mechanicals: ABS plastic (IP40)

Operating Temperature: -40 to +85 Degree Celsius

Digital Inputs

Number of channels: 2

Input Switching Threshold: High – 12V, Low – 0V

Applications

Multiprotocol CAN Analyzer

Our CAN to USB adapter supports various protocols that are common in automotive applications such as UDS, J1939, OBD2, J2534, etc. Together with the PreciCAN-View tool, this low-cost CAN to USB adapter can capture and display the CAN frames at high-speed. Up to 1200 to 1400 CAN frames per second can be captured and logged in the local PC storage for further analysis. With built-in transmit and receive capabilities, users can not only monitor but also simulate CAN traffic for testing and validation. The PreciCAN-View tool allows easy filtering, decoding, and replay of captured frames, making debugging faster and more efficient. Engineers can also export logs in standard formats for deeper analysis using third-party software. The compact USB form factor ensures portability, while its plug-and-play nature reduces setup time. Designed for both bench testing and in-vehicle applications, this adapter offers a reliable and cost-effective solution for modern automotive development needs.

vehicle on board diagnostics

FAQs

Yes. The PreciCAN CAN to USB Adapter allows you to monitor live CAN messages in real time using the PreciCAN-View tool or other supported applications.
