General
Power Supply: 9V to 24V DC
Power consumption: 1.2A Max @12V
PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool
Indication: Status LEDs for Power, Serial communication, cloud network communication

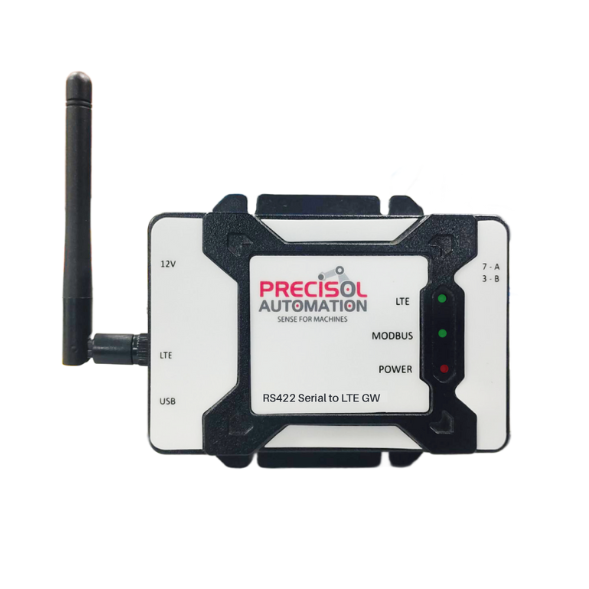

RS422 Serial Interface
Connection: External interface via pluggable terminal connector
Data bits: 5,6,7,8 bits
Baud Rate: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
Stop bits: 1, 2 bits
Parity: None, Odd, Even, mark, space
Environmental
Dimension: 105mm X 68mm X 31.5mm (W/O flanges)
Weight: 138 gm
Mechanicals: ABS plastic (IP40)
Operating Temperature: -40 to +85 Degree Celsius
Data Storage
Storage Type: Non-Removable microSD card
Capacity: 8 to 32GByte
Analog Inputs
Number of channels: 2
Range: 4mA to 20mA current input
Resolution: 16-bit
Digital Inputs
Number of channels: 2
Input Switching Threshold: High – Greater than 3V or 1.5V (optional, to be mentioned during ordering), Low – Less than 3V or 1.5V (optional, to be mentioned during ordering)
Voltage input limit: 30V Max
Cellular Connectivity
LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)
Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8
Antenna: SMA connector for external finger type or expandable antenna
SIM interface: Nano SIM card
Cloud Data Transfer
Log data in industry standard format.
Cyclic Logging support – Oldest file will be deleted when storage is full
100% power safe data logging – no file corruption when disconnected.
Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data
RTC can be configured to match local time zone.
RTC can be auto-synced via LTE network.
Each device has a globally unique ID ensuring unique log file naming.
Configuration or firmware Over-The-Air support with digital signature
Periodic heartbeat to cloud for connection supervision
Option for enabling or disabling upload of logged files to cloud
